Behringer Eurocom MA4000M 9-Input Distributed Music Mixer-OPEN BOX

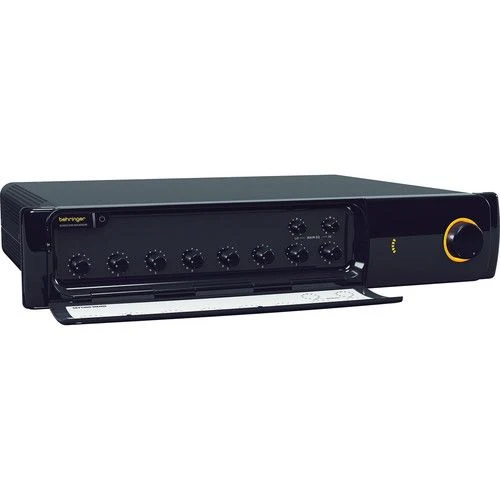

Behringer Eurocom MA4000M 9-Input Distributed Music Mixer

in distributed music, paging, or AV applications in restaurants, bars, stores, sports clubs or houses of worship. It features a variety of switchable mic/line inputs with phantom power including four combo XLR/TRS, dual four-pin Euroblock connectors, and dual three-pin Euroblock connectors. It also has a dedicated telephone/page four-pin Euroblock connector and four internally summed stereo RCA auxiliary inputs that allow you to connect outside sources such as CD/MP3 players or cable boxes. The auxiliary inputs can be individually assigned to the main output via the unit's rear-panel DIP switches.

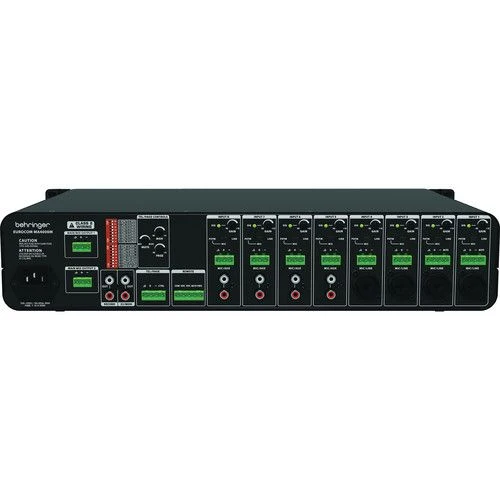

The MA4000M provides a variety of outputs, including dual three-pin male Euroblock Main Mix connectors that are mic/line switchable. A stereo RCA Zone 2 (Z2) or Music on Hold (MOH) output allows you to route your audio to a second location, your telephone system, or a supplemental sound reinforcement system. Each input can be independently assigned to the Z2/MOH output via rear-panel DIP switches. The MA4000M also includes pre-master main mix stereo RCA recording outputs.

Ducking Control The MA4000M automatically ducks or mutes all other inputs during paging. Its mute depth knob allows you to determine the level of attenuation Individual Trim Control All inputs feature independent trim control Front-Panel Controls, EQ, and LEDs The MA4000M's front panel features individual input level knobs for Inputs 1 to 8 as well as a 2-band High and Low EQ. It also features auto-dimming control illumination, dual-channel LED VU meter, power switch, and dual-function indicator ring surrounding the Master volume control Rack-Mountable The MA4000M includes detachable rack ears allowing for rack installation

Inputs	Mic/Line Inputs 1 and 2: 2x Combo XLR/TRS jacks 2x 4-pin Euroblock connectors (in parallel) Mic/Line Inputs 3 and 4: 2x Combo XLR/TRS jacks 2x 3-pin Euroblock connectors (in parallel) Inputs 5 to 8: 4x 3-pin Euroblock connectors (electronically balanced) Auxiliary Inputs: 4x Stereo RCA jacks (summed) Telephone/Page Input: 1x 4-pin Euroblock connector
Outputs	Main Mix 1 and 2: 2x 3-pin male Euroblock connectors (mic/line switchable) Z2 and MOH: 2x RCA jacks Record: 2x RCA jacks
Input Impedance	Inputs 1 to 4: Mic: -50 to 0 dBV @ 600 Ω (electronically balanced) Line: -27 to 0 dBV @ 600 Ω (electronically balanced) Inputs 5 to 8: Mic: -50 to 0 dBV @ 600 Ω Line: -27 to 0 dBV @ 600 Ω Auxiliary: Line: -10 dBV @ 10 kΩ (unbalanced) Telephone/Page Input: Mic: -50 to 0 dBV @ 600 Ω Line: -27 to 0 dBV @ 600 Ω
Output Impedance	Main Mix 1 and 2: Mic: -40 dBV @ 1 kΩ Line: 0 dBV @ 600 Ω Z2 and MOH 0 dBV @ 600 Ω (unbalanced) Record: 0 dBV @ 600 Ω (unbalanced)
Phantom Power	24 VDC (switchable, Inputs 1 to 8 and Telephone/Page)
Dynamic Range	Mic: 65 dB Line: 80 dB
Total Harmonic Distortion/Noise	0.5% @ 1 kHz (rated output)
Frequency Response	50 Hz to 18 kHz (+/- 2 dB)
Tone Controls	Low: +/- 12 dB @ 100 Hz High: +/- 12 dB @ 10 kHz
Connections	Remote: 5-pin Euroblock connector Volume: 10 kΩ linear-taper potentiometer Power: 5 VDC voltage make contact input (no open voltage) Mute: No-voltage make contact input (open voltage 5 VDC, short-circuit < 10 mA) DC Power: 5 VDC, 100 mA Current limited (short-circuit protected) Telephone/Page Mute: No-voltage make contact input (open voltage 24 VDC, short circuit < 10 mA) Inputs 1 & 2 Mute: No-voltage make contact input (open voltage 24 VDC short circuit < 10 mA)
Indicators	Power: Yellow LED ring illumination Overload/Protection: Red LED ring illumination Output Level: Yellow LED VU meter (red when clipping)
Power Supply	Mains Voltage: 100 to 240 VAC, 60/50 Hz Fuse: T 1 AH 250 V Power Consumption: 26 W Mains Connector: Standard IEC receptacle
Dimensions	3.5 x 17.0 x 16.0" (8.8 x 43.2 x 40.6 cm)
Weight	10.2 lb (4.6 kg)

Packaging Info

Package Weight	13.3 lb
Box Dimensions (LxWxH)	22.5 x 17 x 7.3"
