Fornitore: EMS

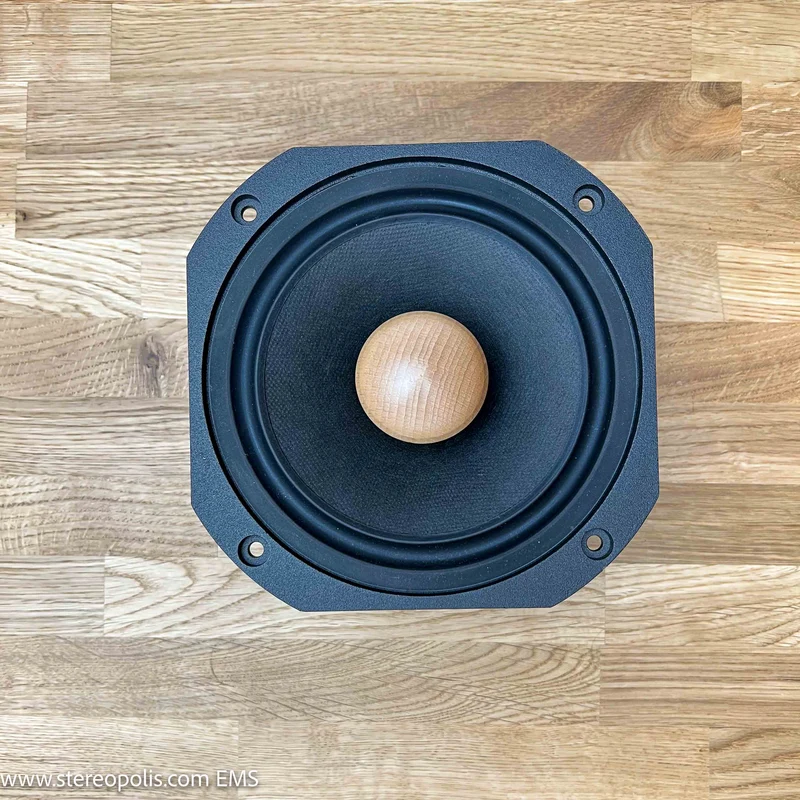

EMS LB7 - 8 Ohm - pair (2 units)
Descrizione
The EMS LB7 - sold in pairs - is a 7 inches loudspeaker built with a demanding audiophile in mind.
The motor use an oversized and very powerful ferrite magnet with internal rings to stabilize impedance and magnetic fluid.
The moving mass is incredibly strong considering its lightness.
This is the very first EMS speaker using HPMF II technology.
Thanks to it, the sound is very realistic and analytical. Real fullrange with 3D stereophonic image.

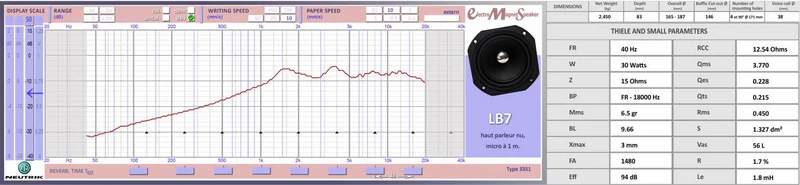

Technical details:
|
Efficiency 1 W/1m at Fs |
94 dB |
|
Frequency response |
40-18 000 Hz |
|
Impedance Ω |
8 Ω |
|
Power max. RMS |
30 W |
|
Weight |
2,45 kg |
|
Linear excursion |
3 mm |
|
Diameter (basket) |
165-187 mm |
|
Diameter fixation holes |
171 mm |
|
Diameter drilling enclosure |
146 mm |
|
Depth HP |
83 mm |
|
Fs |
40 Hz |
|
Re |
12.54 Ω |
|
Qts |
0.215 |
|
Qe |
0.228 |
|
Qm |
3.77 |
|
Vas |
56 L |
|
Bl |
9.66 |
|
Mms |
6.5 gr |
|
Sd |
132.7 cm² |
