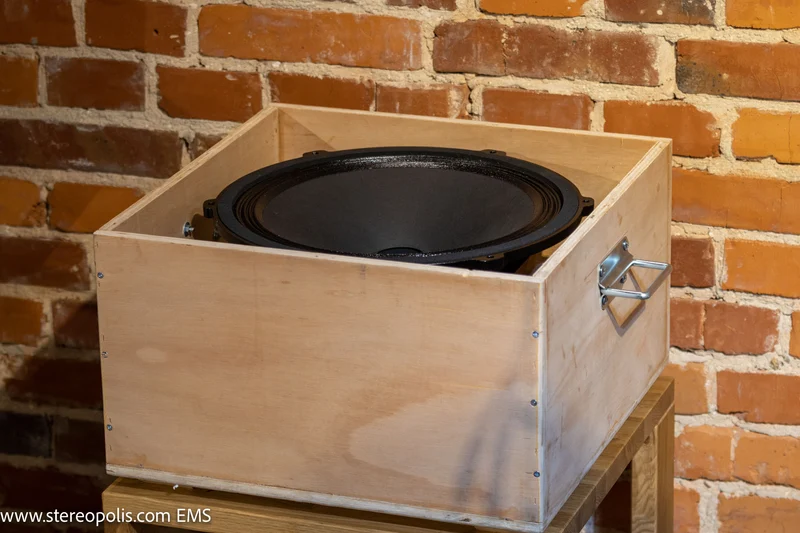

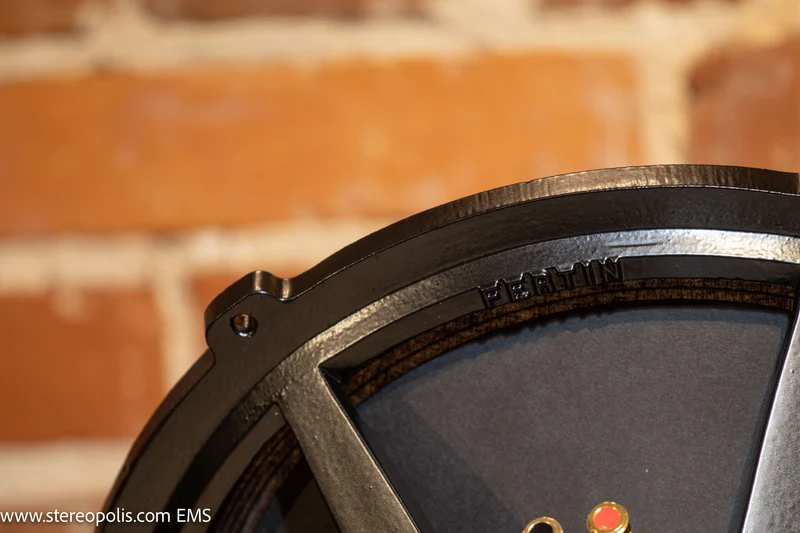

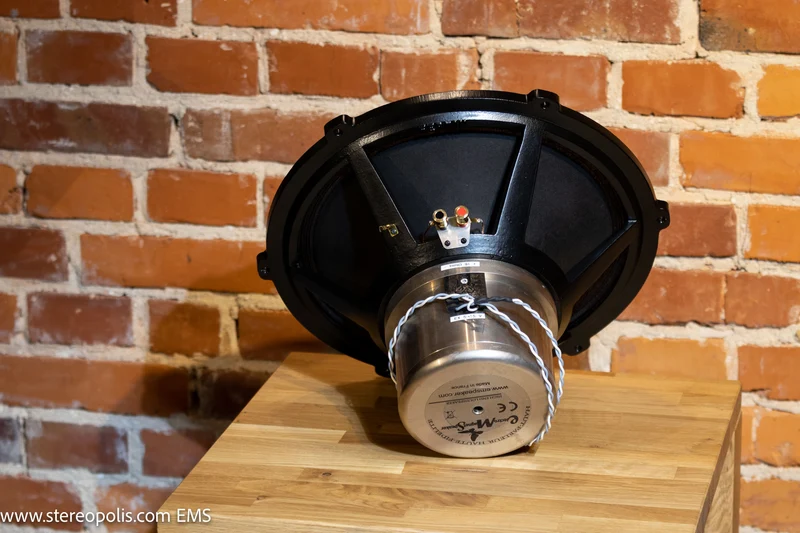

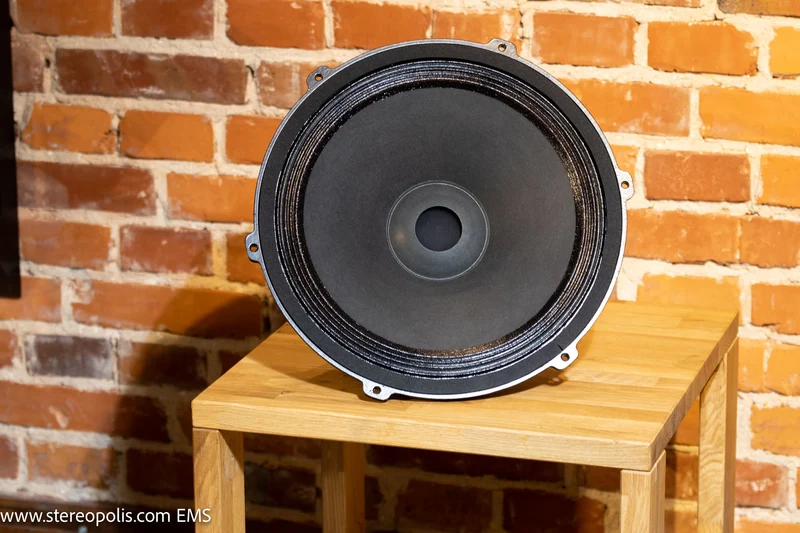

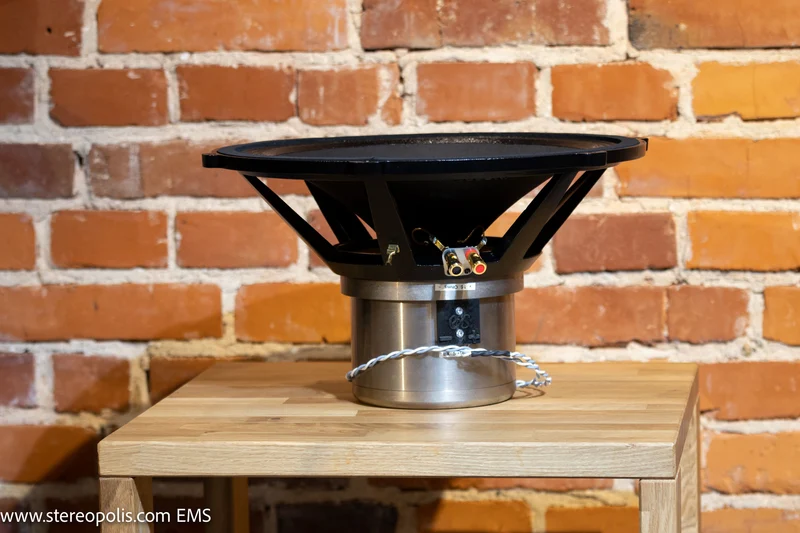

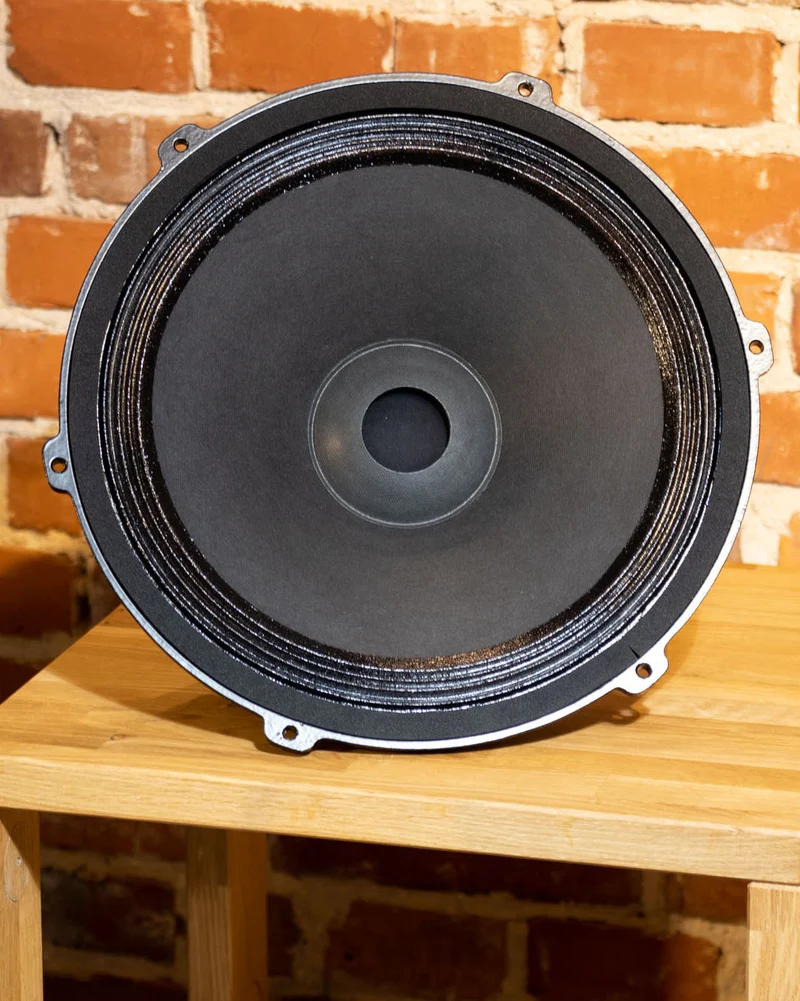

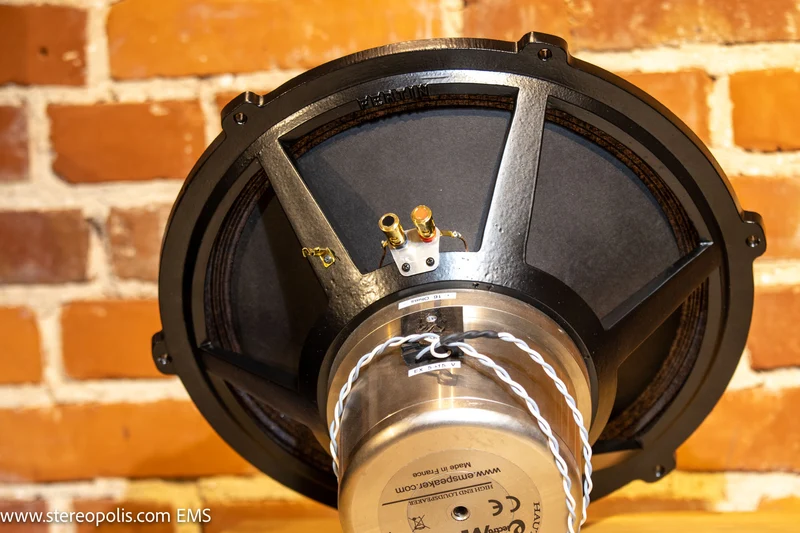

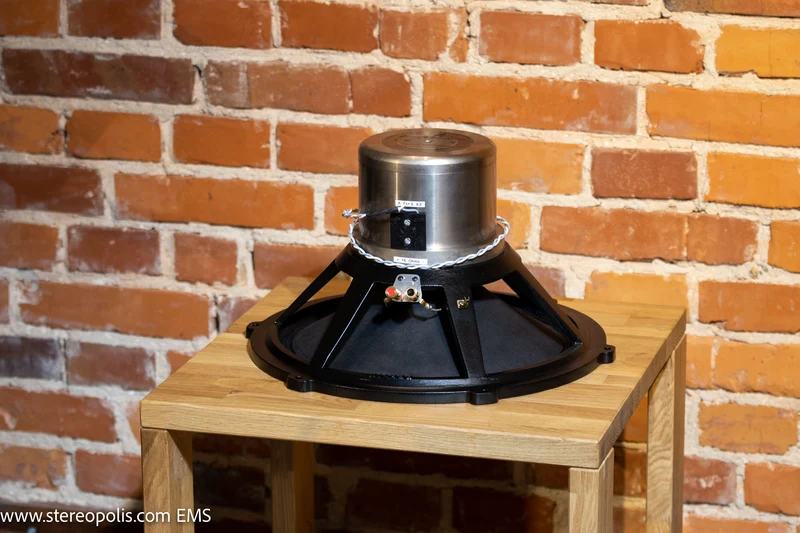

EMS B15 EX MKII (field coil) bass driver - (1 unit)

The B15EX is a 15-inch high performance loudspeaker (a 100 db/W/m efficiency) with bass dedicated frequency.

Thanks to its electromagnetic motor, the versatile Qt allows for an optimal adaptation of all sorts of enclosures, as well as conditions relating to sound location.

Its characteristics give it an ultra rapid impulse response, along with optimal damping, even in the lowest of frequencies.

Technical details:

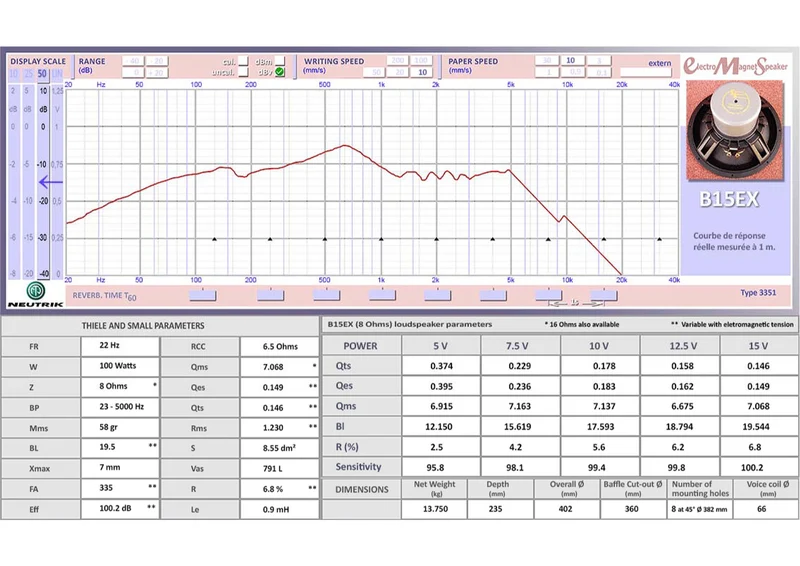

Efficiency 1 W/1m at Fs	variable depending of the voltage supplied - see chart
Impedance Ω	8 Ω  or 16 Ω
Power max. RMS	100 W
Weight	14,7 kg
Linear excursion	7 mm
Diameter (basket)	388 mm
Diameter fixation holes	394 mm
Depth HP	227 mm
