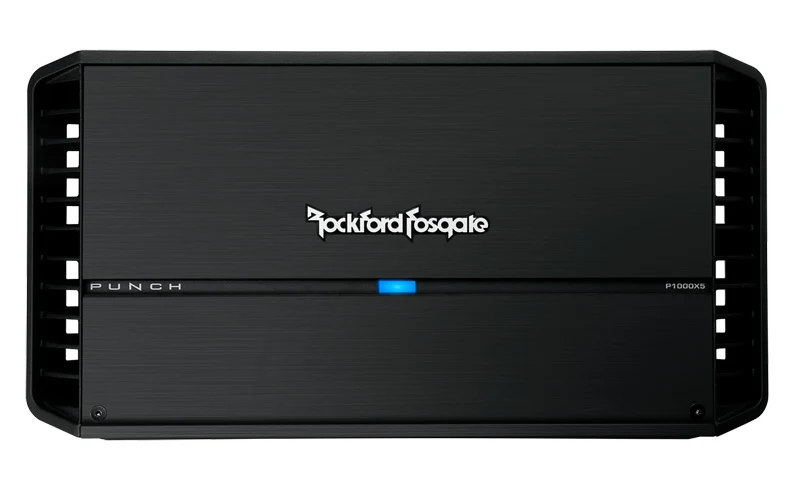

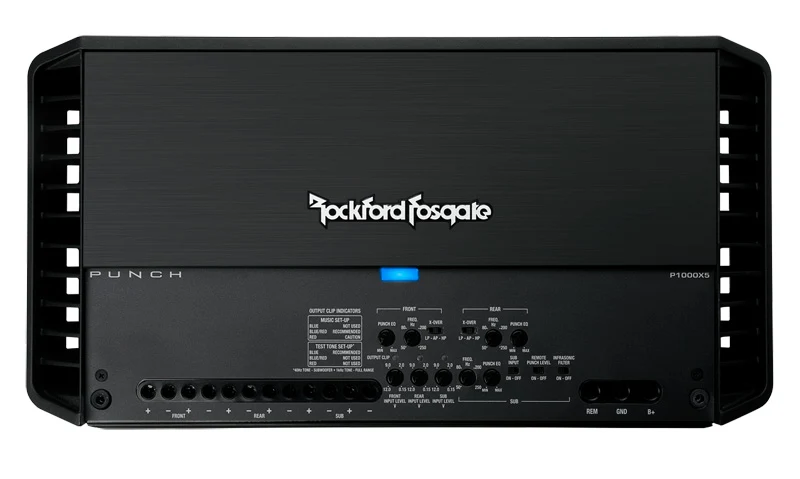

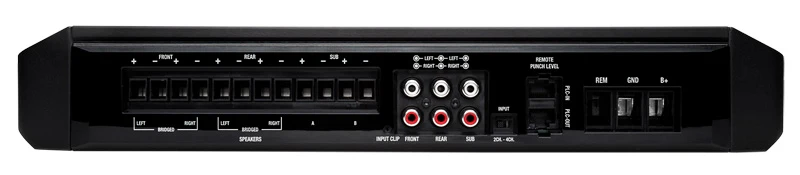

Rockford Fosgate P1000X5 – Amplificateur 5 Canaux 1000W RMS Série Punch

Amplificateur 5 Canaux 4x75WRMS @ 4Ohms / 4x100WRMS @ 2Ohms & 1x200WRMS @ 4Ohms / 1x400WRMS @ 2Ohms / 1x500WRMS @ 1Ohm

CEA-2006 Compliant:

CEA-2006 Power Rating 75Wx4 + 150Wx1 @ 4? ≤1.0% THD+N

Number of Channels:

5

Rated Power  (RMS Continuous Power):

75 Watts x 4 +  150 Watts x 1 @ 4-Ohm  125 Watts x 4 +  300 Watts x 1 @ 2-Ohm  N/A +  500 Watts @ 1-Ohm

Total Power  (Sum of Rated Power):

1000 Watts

Dynamic Power  (PVC/PowerCube®):

115 Watts x 4 +  299 Watts x 1 @ 4-Ohms 0° Res  190 Watts x 4 +  540 Watts x 1 @ 2-Ohms 0° Res  N/A +  863 Watts x 1 @ 1-Ohm 0° Res

Bridgeable:

Yes (front/rear channels)

Frequency Response:

Front/Rear: 20Hz - 20kHz +/-3dB  Sub: 20Hz - 500Hz +/-3dB

Efficiency (average):

Front/Rear: 66% @ 4-Ohm  Sub Channel: 80% @ 4-Ohm

Total Harmonic Distortion (THD+Noise):

<1.0%

Signal-to-Noise (CEA):

>85 dB  Sub: >80 dB

Channel Separation:

>50 dB

Common Mode Rejection:

>55 dB

Damping Factor:

>500  Sub: >300

Crossover Controls:

Front: 50Hz - 250Hz High-Pass @ 12dB/Octave  Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave  Sub: 50Hz - 250Hz Low-Pass  Sub: 28Hz infrasonic filter @ 12dB/Octave

Tone Controls:

Sub:  0dB to +18dB @ 45Hz

Input Sensitivity:

150 mV - 12 V

Signal Input:

Input Switch: Hi/Low level input  Input Switch: 2/4 channel input  Hi/Low Level: 3 RCA Pair  Sub: front/sub input switch

Signal Output:

-

Power Input Connector:

Block

Power Wire Gauge:

4 AWG

Speaker Output Connector:

Block

Speaker Wire Gauge:

12 AWG

Heat Sink Type:

Cast

Cooling:

Convection

Remote Controls:

Optional Punch Level Control (PLC2) Ready

Visual Indicators:

Power/Protect/Thermal LED  Input Clip LED3  Output Clip LED1,2,3  LED Color Legend:  1BLUE: <0.5% THD  2VIOLET: 1% THD  3RED: 10%+ THD

Circuit Topology Class:

Class A/B + Class BD (Sub)

Operating Voltage:

9 - 16 VDC

Recommended Fuse  (not included):

150 A

Max. Current Draw (13.8V Sinewave):

150 A

Average Current Draw (13.8V Music):

75 A

Suggested Alternator:

100 A

Shipping Weight:

15.3 Lbs. (6.93 Kg.)

Dimensions (H x W x D):

2.38 x 7.76 x 15.03 (in)  6.05 x 19.71 x 38.18 (cm)
