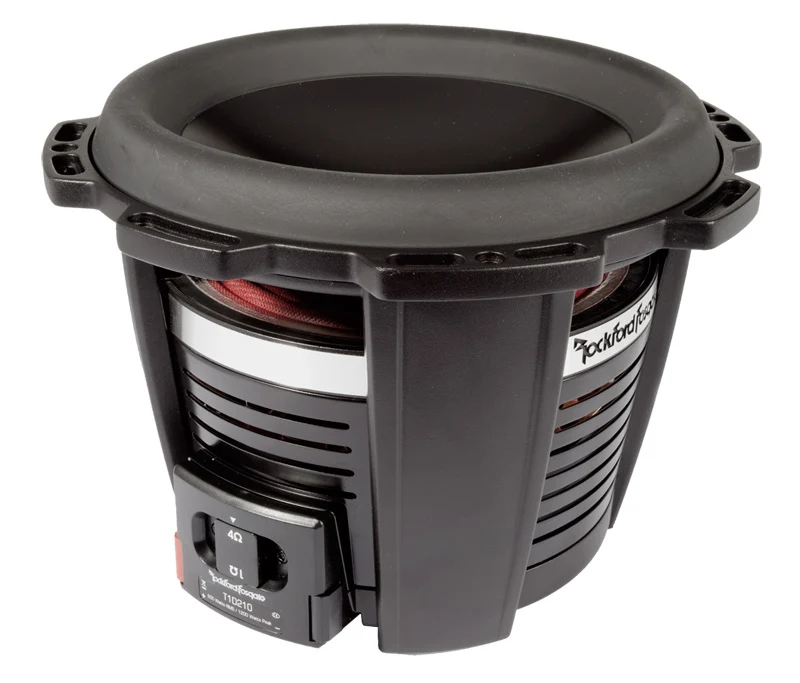

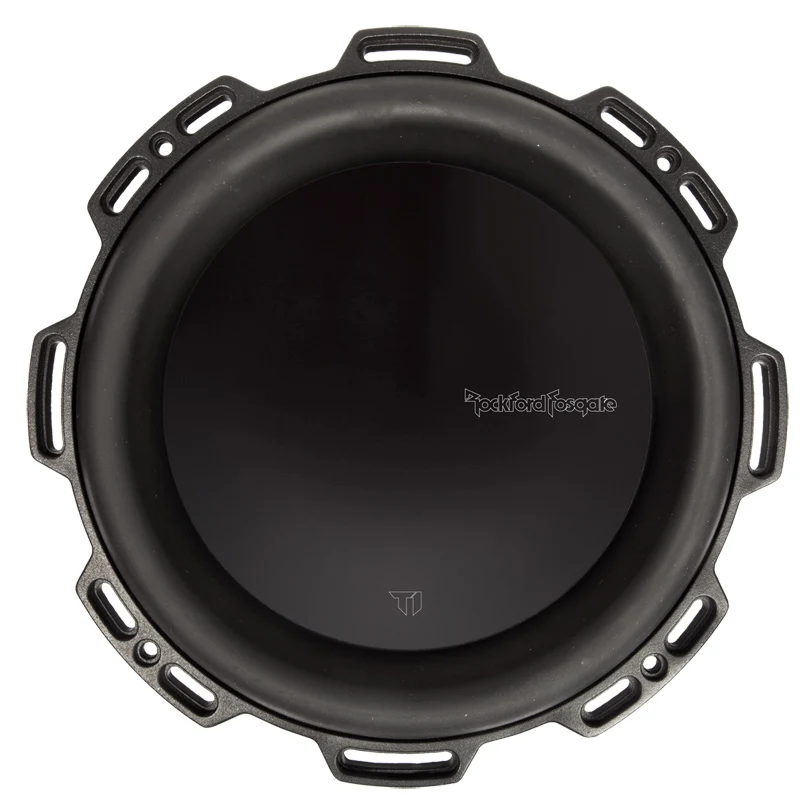

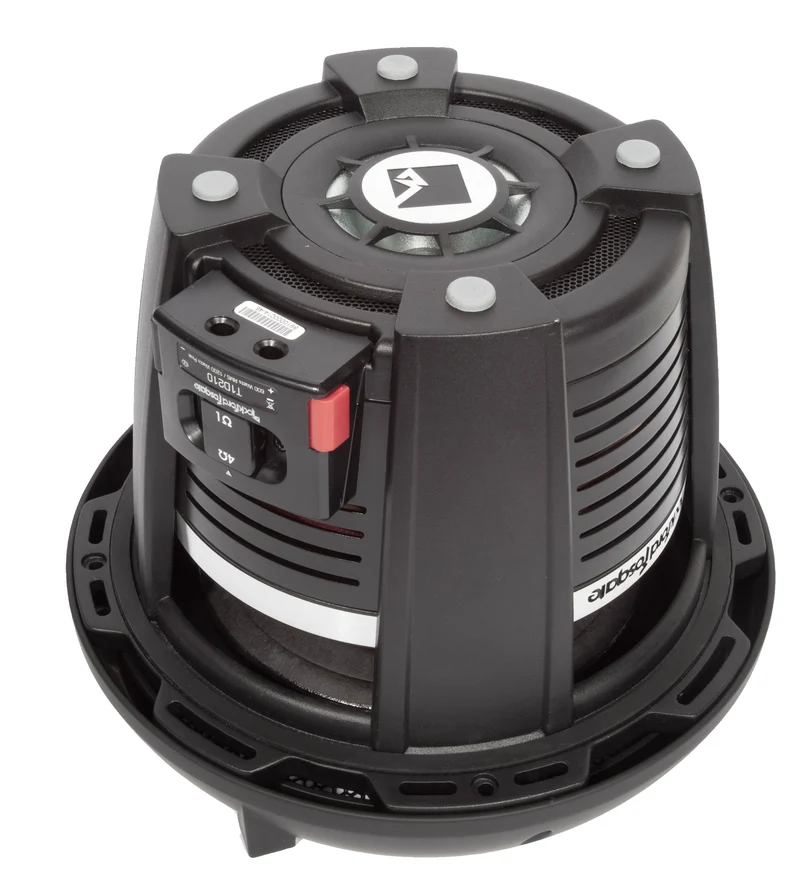

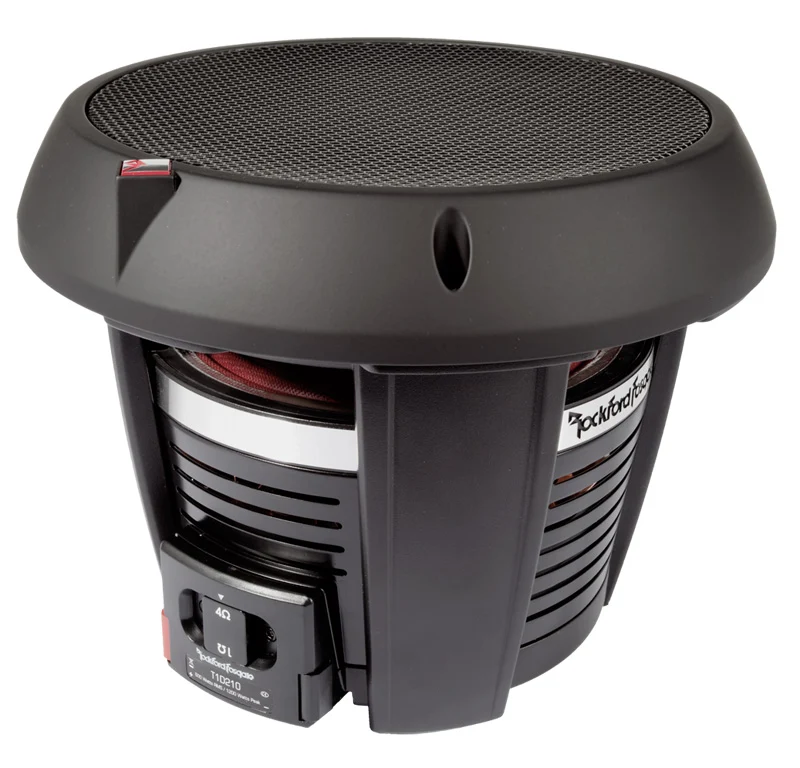

Rockford Fosgate T1D210 – Subwoofer 10" 600 W RMS / 1200 W Max Dual 2Ω Série T1D

Subwoofer T1D210

Subwoofer 25cm 600WRMS double bobine 2Ohms

600/1200 Watts RMS/MAX., 2 + 2 Ω

SPL 83 dB, ‡ 162 mm, Ø 230 mm

CEA-2031 Compliant:

Size:

10"

Subwoofer Type:

Standard

Power Handling (Watts RMS):

600 Watts RMS  1200 Watts Max

Nominal Impedance:

Dual 2-Ohm

Voice Coil Type:

Dual Voice Coil

Voice Coil Diameter:

3" (75.5 mm)

Magnet Weight (oz):

100 oz. (2.84 kg)

Speaker Connector:

Compression Terminal

Fs (Hz):

34.5

Re (Ohms):

3.25

Le (mH):

1.8

Qms:

6.00

Qes:

0.59

Qts:

0.54

Vas (Liters):

15.4

Sd (cm2):

345

SPL (dB @ 1w/1m):

83

Xmax (mm):

16

Sealed Box Volume (Vb):

0.75 cu. ft. (21.2 Liters)

Vented Box Volume (Vb):

1.5 cu. ft. (42.4 Liters)

Woofer Displacement:

0.078 cu. ft. (2.2 Liters)

Cutout Diameter:

9.0625 in. (230 mm)

Mounting Depth:

6.375 in. (161.9 mm)

Shipping Weight:

25.7 Lbs. (11.65 Kg.)
