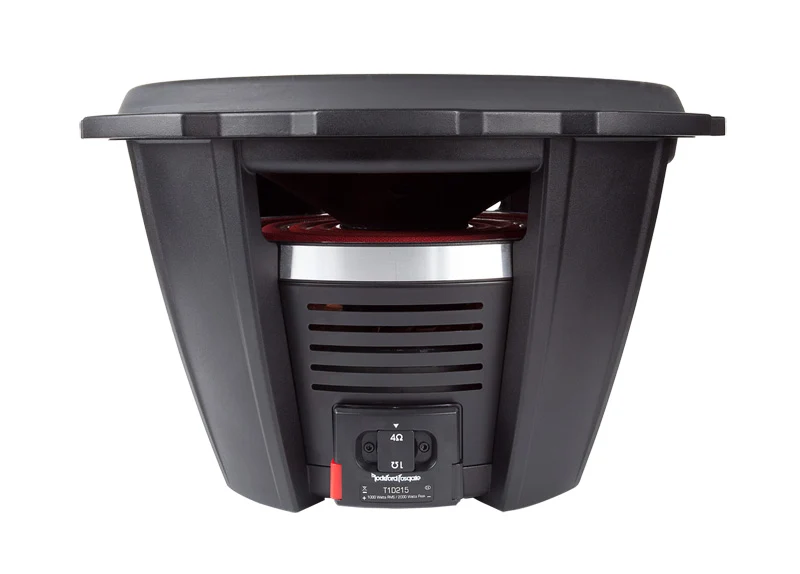

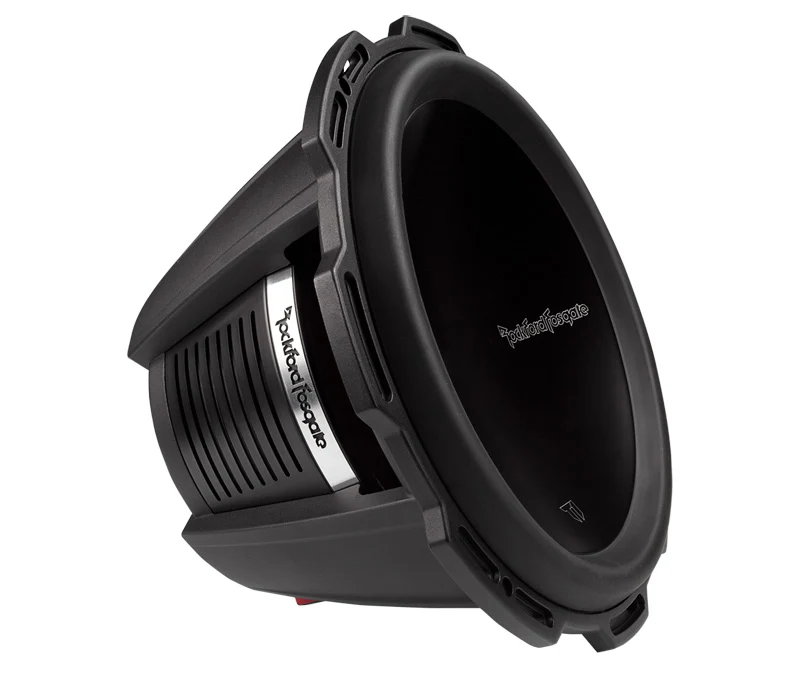

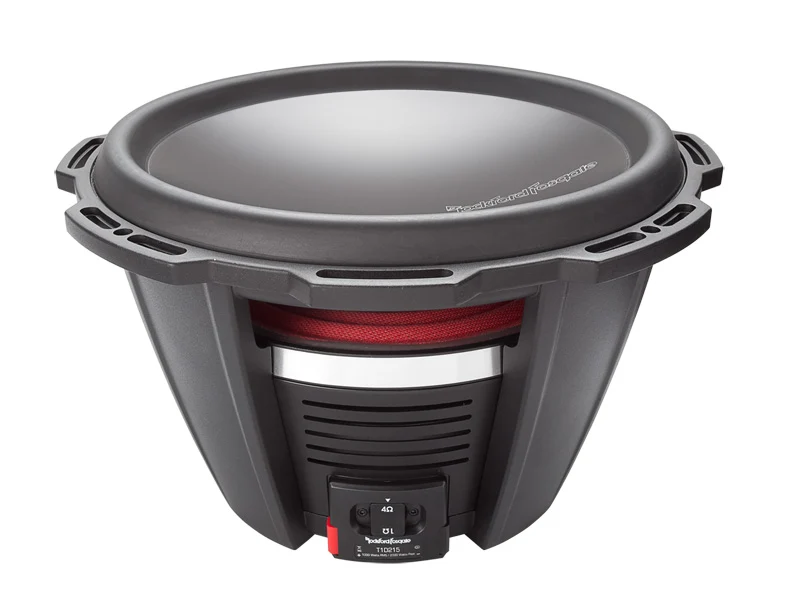

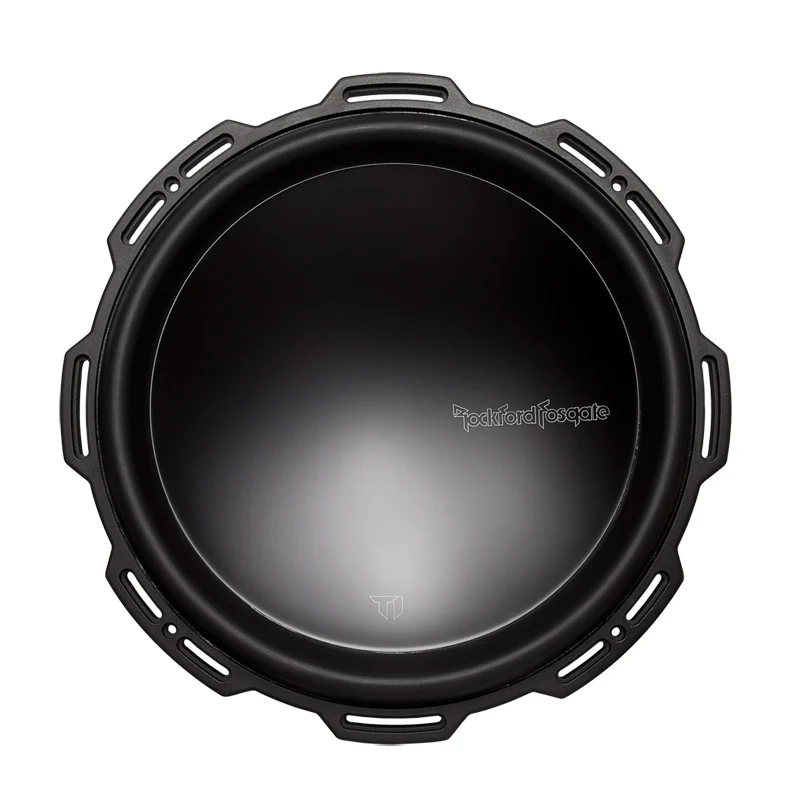

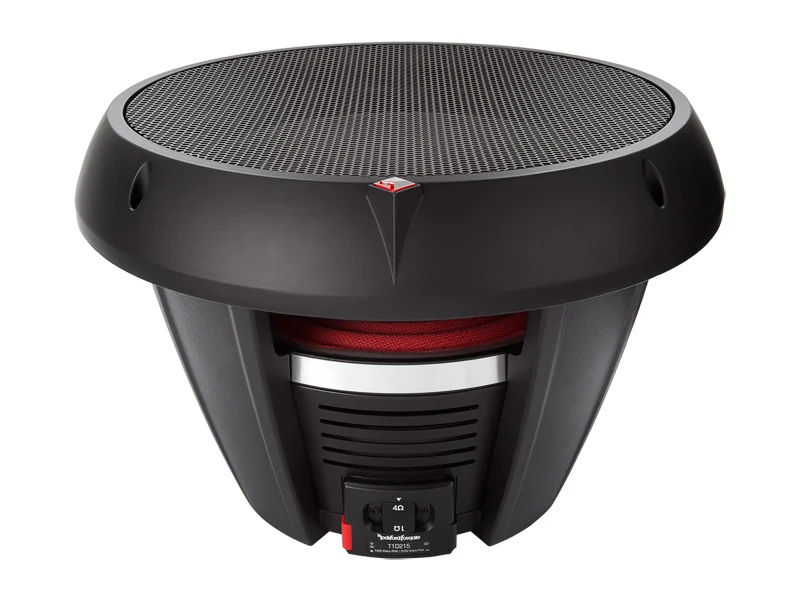

Rockford Fosgate T1D415 – Subwoofer 15" 1200 W RMS / 2400 W Max Dual 4Ω Série T1D

Subwoofer T1D415

Subwoofer 38cm 1000WRMS Double bobine 4Ohms

1000/2000 Watts RMS/MAX., 4 + 4 Ω

SPL 88 dB, ‡ 213 mm, Ø 354 mm

CEA-2031 Compliant:

Size:

15"

Subwoofer Type:

Standard

Power Handling (Watts RMS):

1000 Watts RMS  2000 Watts Max

Nominal Impedance:

Dual 4-Ohm

Voice Coil Type:

Dual Voice Coil

Voice Coil Diameter:

3.0" (75.5 mm)

Magnet Weight (oz):

229 oz. (6.49 kg)

Speaker Connector:

Compression Terminal

Fs (Hz):

27

Re (Ohms):

6.50

Le (mH):

3.6

Qms:

6.00

Qes:

0.55

Qts:

0.51

Vas (Liters):

102.0

Sd (cm2):

845

SPL (dB @ 1w/1m):

87.5

Xmax (mm):

16.4

Sealed Box Volume (Vb):

2.25 cu. ft. (63.7 Liters)

Vented Box Volume (Vb):

2.66 cu. ft. (75.3 Liters)

Woofer Displacement:

0.191 cu. ft. (5.4 Liters)

Cutout Diameter:

13.9375 in. (354 mm)

Mounting Depth:

8.39 in. (213 mm)

Shipping Weight:

54.1 Lbs. (24.53 Kg.)
